Lee Wei Kang - Project Portfolio

PROJECT: The Food Diary

Overview

This project portfolio page serves to document my contributions to The Food Diary, a software engineering project that was undertaken as part of the National University of Singapore (NUS) School of Computing’s Software Engineering module. In a team of five students, we worked on a well established application, Address Book 4, of ten thousand lines of code, and morphed it into the application we have now.

The Food Diary is designed for food lovers whose wish to document their experiences at a restaurants in a fast and simple fashion. It serves as a journal, allowing the users to give reviews and ratings to the restaurant that they have been to.

My role in this project is to implement a function that allows food lovers to visit the website of restaurants so that they can reference the website while writing a review.

The following symbol can help you better understand the some considerations that I had as you read through my contributions to the User Guide and Developer Guide

This is a note. A note indicates important additional information that should be read.

Summary of contributions

  • Major enhancement: added the ability to visit website of restaurants

    • What it does: This feature allows users to view website of visited and unvisited restaurants.

    • Justification:

      • Since users may not remember every details of the restaurant, the feature to display website of restaurants allow users to reference restaurant’s website while writing a review for the restaurant.

    • Highlights: This feature requires understanding of java.net library and also handling tricky errors that can arise when connecting to the internet to load websites.

    • Credits: Used java.net package to validate websites before allowing users to add them into restaurant class.

  • Minor enhancement: Enhance add and edit function to validate weblink before adding restaurant into Food Diary. If there is no internet, Food Diary will proceed to add or edit the restaurant without the weblink. This way, no restaurants with invalid weblink will be added.

  • Code contributed: Here’s a link to my code on the Project Code Dashboard.

    • Project management:

      • Set-up GitHub organisation to fork Address Book 4

      • Create a dummy GitHub account perform Continuous Integration for our project.

      • Managed release of v1.2

    • Enhancements to existing features:

      • Changed fields of add command to be optional so that users can add restaurants with minimal information. #152

      • Added Opening Hour class and Weblink class as new parameters for Restaurant #29, #17

      • Updated sample data #17

    • Documentation:

      • Updated README #7

      • Updated User Guide and Developer Guide on visitWeb feature #106 #150

    • Community:

      • Actively looked through and approved PRs, providing constructive comments to codes #103, #95, #148

      • Actively test and find bugs that the application can possibly have. Made used of GitHub issue tracker to organise these findings. #145, #65

    • Tools:

      • Enabled auto-publishing of documentation for our project.

Contributions to the User Guide

The user guide acts as a instruction manual for new users. For my part, I enhanced the add and edit feature and implemented the visitWeb command feature. Below is an excerpt of Food Diary’s User Guide that I added which shows my contributions to Food Diary and the documentations that I have written.

Adding a restaurant: add

You can add a restaurant that is not found in the current list of restaurants.
Format: add n/NAME a/ADDRESS po/POSTAL CODE [p/PHONE] [e/EMAIL] [t/TAG]…​ [w/WEBLINK] [o/OPENING_HOURS]

  • To add a restaurant, the minimal information you need to have is its name, address and postal code.

  • A restaurant can have any number of tags (including 0).

  • A restaurant can have a phone number, email, weblink and opening hours or none.

Examples:

  • add n/Astons a/Blk 30 Geylang Street 29, #06-40 po/267951 p/66123024 e/astons@dummy.com w/astons.com.sg o/1000 to 2300

  • add n/Bangkok Jam p/65272758 e/bangkokjam@example.com a/Blk 30 Lorong 3 Serangoon Gardens, #07-18 po/018956 t/Spicy

  • add n/KFC a/Bukit Panjang Plaza po/670111

When you are adding in the Weblink, the Food Diary will check whether the Weblink is valid for you. You need to have internet connection, else the Food Diary will proceed to add the restaurant without the Weblink.

NoInternetAdd

Image 1.1 When there is no internet connection, adding a restaurant with weblink will display this result

Editing details of a restaurant : edit

You can edit the details of a restaurant identified by the index number used in the list.
Format: edit INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [po/POSTAL] [t/TAG]…​ [w/WEBLINK] [o/OPENING HOURS]

  • The index refers to the index number shown in the displayed restaurants list.

  • The index must be a positive integer 1, 2, 3, …​

Examples:

  • edit 2 n/MACS
    Changes the name of the second restaurant in the list to MACS.

When you are editing the Weblink of a restaurant, the Food Diary will check whether the Weblink is valid for you. You need to have internet connection else, the Food Diary will not edit the Weblink for you.

Display website of selected restaurant : visitWeb

The restaurant’s website can serve as your reference when you are adding it into your restaurant list or when writing a review for the restaurant.

You can display the website of a restaurant identified by the index number used in the list based on its weblink.
Format: visitWeb INDEX

  • The index refers to the index number shown in the displayed restaurants list.

  • The index must be a positive integer 1, 2, 3, …​

You can also display the website of any restaurant by entering its url.
Format: visitWeb URL

This allows you to visit website of any restaurant before they are entered into the list of restaurants in the FoodDiary.

Website is displayed on a browser window which shows upon visitWeb command.

A URL is a valid link to a website. It should be in this format: local-part.domain and adhere to the following contraints:

  1. The local-part should only contain alphanumeric characters and these special characters, excluding the parentheses, (!#$%&'*+/=?`{|}~^.-)

  2. This is followed by a '.' and then a domain name. The domain name must:

    1. be at least 2 characters long,

    2. start and end with alphanumeric characters,

    3. consist of alphanumeric characters, a period or a hyphen for the characters in between, if any.

Examples:

  • list
    visitWeb 4
    This command displays the webpage of the 4th Restaurant in your restaurant list.

  • visitWeb www.jollibee.com.ph
    This command displays webpage of Jollibee as shown below.

visitWebJolliB

Image 1.1 Result of visitWeb www.jollibee.com.ph.

You need to have internet connection to visit the website of the restaurant.

Contributions to the Developer Guide

The following shows my addition to the developer guide for visitWeb feature. It also illustrates the considerations and the thought process that I had when I was designing and implementing this feature

Visit Webpage Feature

Website can be displayed on the BrowserPanel with visitWeb command.

visitWeb INDEX

Visits website of Restaurant selected by user.

Restaurants contains a Weblink field which encapsulates the Url of the restaurant website.

When restaurant is added to Food Diary with the Add feature, the Weblink added with the restaurant is checked by WebUtil to ensure that the Weblink is a Url that belongs to a website that exists. If the protocol is absent, WebUtil will check if the Weblink uses HTTP or HTTPS protocol and append to it. This will be hidden from the user. If there is no internet connection, WebUtil is unable to validate Weblink and Food Diary will add the restaurant without the Weblink.

Upon visitWeb INDEX command, Weblink of the Restaurant at the selected index will be retrieved and passed into BrowerPanel of UI to load the website of the restaurant as a pop-up window. Since website of restaurant might be taken down after it has been added to the restaurant, there is a need to validate the Weblink again before passing it to BrowserPanel.

The following steps illustrates the sequence to visitWeb INDEX command with reference to the sequence diagram below:

  1. Weblink is retrieved from the selectedRestaurant inside Model component.

  2. Using WebUtil utility class in Commons component, check if there is internet connection so validate and display the website.

  3. If there is no internet connection, inform user.

  4. Validate Weblink by pinging its Url and checking the HTTP response code.

  5. Pass Weblink to BrowserPanel through CommandResult and invoke WebView engine to display website.

HTTP response codes:
2XX SUCCESS - Weblink is valid
3XX REDIRECTED - Weblink redirects user to the correct Website and hence is valid
4XX, 5XX (Error) - Weblink is invalid

The following sequence diagram shows how the visitWeb index works:

VisitWebSequenceDiagram

Figure 1.1 Sequence diagram of visitWeb INDEX command

Visits website entered by user. This allows user to visit website of restaurant that are not added to the Food Diary.

The difference between this command and the previous is that, the Weblink is directly passed into VisitWebCommand instead of the INDEX of the restaurant. Thus, there is a need to validate this Weblink with the help of WebUtil.

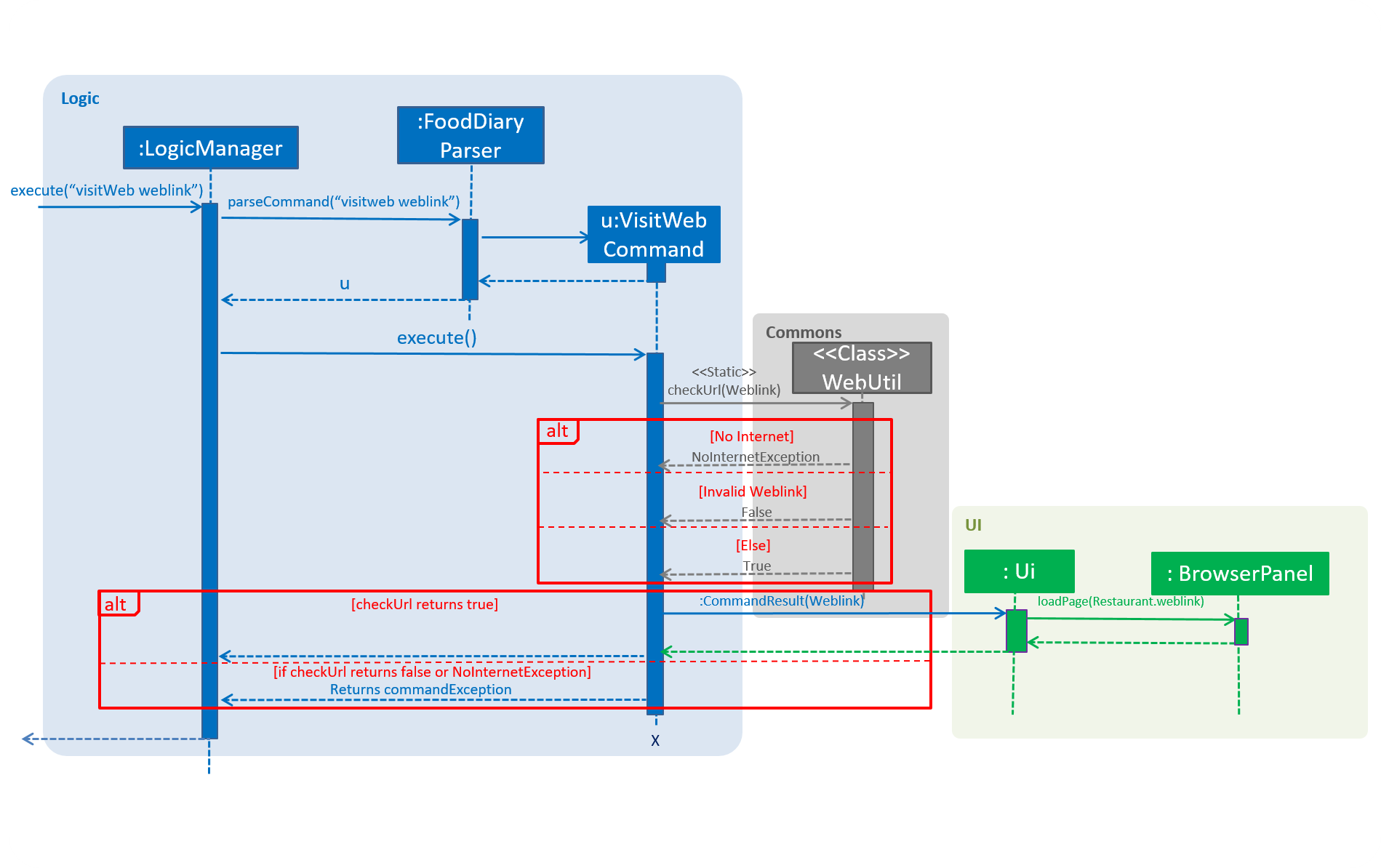

The following sequence diagram shows how the visitWeb weblink works:

VisitWebUrlSequenceDiagram

Figure 2.1 Sequence diagram of visitWeb weblink command

To illustrate the level of checks done in visiting web further, the command is broken down into the following steps.

Step 1. Food Lover enters visitWeb Weblink command.

Step 2. Food Diary checks if the entered Weblink is in the correct Url form. Else, display error message and show example of the correct form of Weblink

Step 2. Food Diary checks if internet connection is present. If not, throw NoInternetException and show error message.

Step 3. Food Diary validates the weblink entered. If weblink does not exist, or it is not in the correct Url format, throw ParseException and show error message.

Step 4. Display website on browser window.

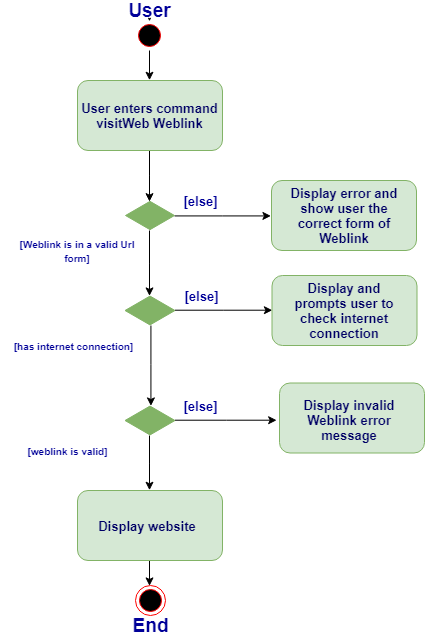

The following activity diagram shows the steps of visitWeb command:

VisitWebUrlActivityDiagram

Figure 2.2 Activity diagram of visitWeb weblink command

Enhancements

  • Before loading the website, the weblink will be validated by checking it’s HTTP response code.

  • If response code is above 400, it suggests that the weblink is not found and that there is an error requesting the website if response code is above 500

  • Also, a NoInternetException is thrown if internet is absent. This is done by pinging to a Google as a reliable web server. If application fails to get a response, we can say that there is high chance that there is no internet connection and hence NoInternetException is thrown.

Design considerations

  • To reduce coupling of Weblink to AddCommandParser, EditCommandParsers in Logic, and also BrowserPanel in UI component, a WebUtil class is implemented under Util of Commons component.

WebUtil supports the following functions:

  1. hasInternetConnection() - Check if there is internet connection by pinging Google.

  2. isUrlValid(String url) - Checks if the input String is a valid Url with successful response code.

  3. validateAndAppend(String url) - Checks input Url if it uses HTTP or HTTPS protocol and append it to the Url.
